Product Description
产品详情描述：
Product Features：
Blue bronchial cuff for easier bronchoscopic positioning – High contrast against airway tissue speeds up placement confirmation.·
Horseshoe-shaped bronchial tip reduces positioning time – Naturally guides into the bronchus, minimizing trauma and repositioning.
Multi-functional connector - one-handed single-lung ventilation.
DEHP-free & latex-free - higher biological safety.
Complete specifications – Fr26 to Fr41, left/right types.
Product Introduction：
[图片:
]

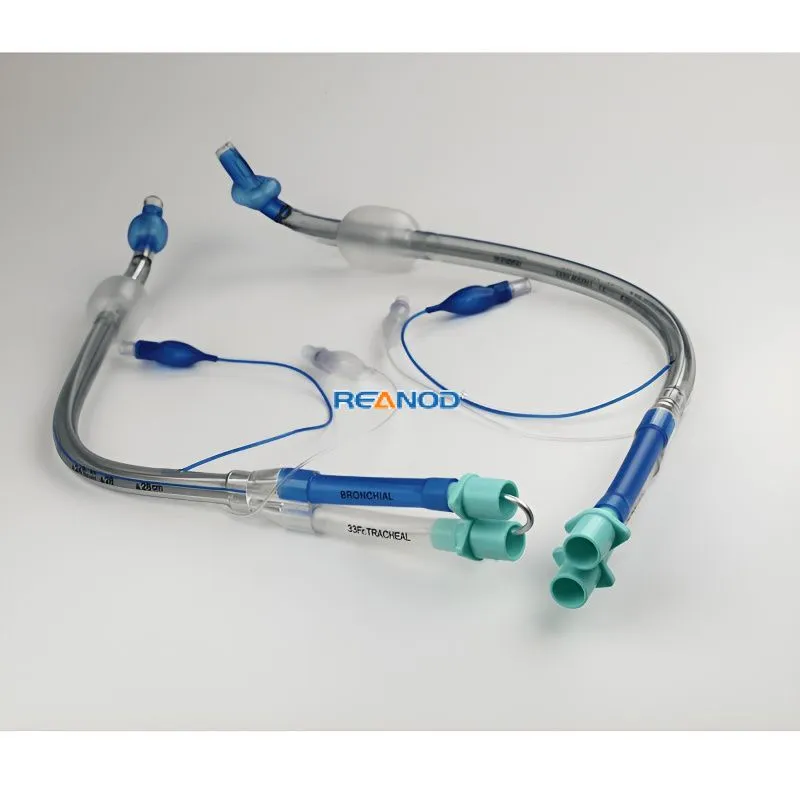

A reliable, cost‑effective standard double‑lumen tube. The blue bronchial cuff offers clear contrast under bronchoscopy for accurate placement. Suitable for routine thoracic surgeries, pediatric open‑chest procedures, and settings where video equipment is unavailable.
Key Components
Size / Specification
Test conditions: Ambient temperature 23±2°C, relative humidity 50±10% (unless otherwise specified)
Suction catheter matching:
Fr26: Fr6 & Fr10
Fr28/31/32: Fr8 & Fr10
Fr33/35/37/39/41: Fr10 & Fr16
Type
Applicable Departments
Thoracic Surgery
Anesthesiology
Critical Care Medicine (ICU)
Interventional Pulmonology
Emergency Department
Pediatric Surgery (for open-chest procedures)
Operating Room (esophageal resection, etc.)
表格内容:
[Component] [Selling Points]
[Tube body (PVC, DEHP-free)] [High biosafety, suitable for prolonged use (≤72h)]
[Tracheal cuff / Bronchial cuff (blue)] [High-volume, low-pressure, reduces trauma; blue cuff easily identified under bronchoscopy]
[Horseshoe-shaped bronchial tip] [Naturally guides into main bronchus, shortens positioning time, reduces intubation injury]
[Multi-function connector (Y-port, double-ear connector, cap)] [Enables easy one-lung / two-lung ventilation without extra adapters]
[Suction catheter (Fr6–Fr16)] [Included for intraoperative airway secretion management]
[Stylet (aluminum)] [Prevents tube deformation, assists intubation; remove after passing glottis]
表格内容:
[Spec. (Fr)] [Outer Dia. (mm) -0.5] [Inner Dia. (mm) +0.2] [Bronchial Cuff Inflated Dia. – Left ±15% (mm)] [Bronchial Cuff Inflated Dia. – Right ±15% (mm)] [Effective Length (mm)]
[Fr26] [8.5] [2.8] [15] [16] [300±15]
[Fr28] [9.0] [3.0] [15] [16] [300±15]
[Fr31] [9.5] [3.4] [16] [17] [330±16.5]
[Fr32] [10.0] [3.8] [16] [17] [330±16.5]
[Fr33] [10.5] [4.0] [16] [17] [330±16.5]
[Fr35] [11.5] [4.2] [18] [20] [360±18]
[Fr37] [12.0] [4.4] [18] [20] [360±18]
[Fr39] [12.5] [4.6] [19] [22] [360±18]
[Fr41] [13.0] [4.8] [19] [22] [360±18]
表格内容:
[Classification Basis] [Available Types]
[Bronchial Orientation] [Left Type / Right Type]
[Patient Population] [Adults / Pediatric (Fr26 and above)]
